JHX6010

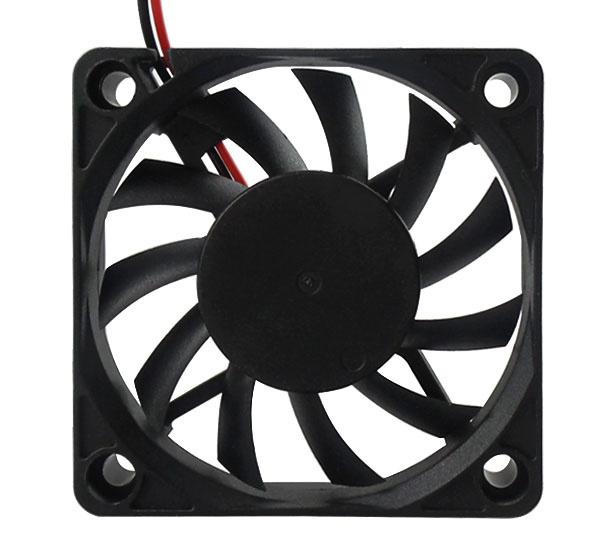

6010 尺寸/Size 60X60X10mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉速 （RPM) |
AirFlow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX6010X05H |
Sleeve Ball |
5 |
4.5～5.5 |
0.35 |
1.75 |
4000 |
17.17 |
3.15 |
28.86 |
|
JHX6010X05M |
0.30 |
1.50 |
3500 |
14.78 |
2.38 |
26.38 |
|||
|
JHX6010X05L |
0.25 |
1.25 |
3000 |
12.30 |
1.67 |
23.33 |
|||
|
JHX6010X12H |
Sleeve Ball |
12 |
10.8～13.2 |
0.23 |
2.76 |
4000 |
17.17 |
3.15 |
28.86 |
|
JHX6010X12M |
0.17 |
2.04 |
3500 |
14.78 |
2.38 |
26.38 |
|||
|
JHX6010X12L |
0.13 |
1.56 |
3000 |
12.30 |
1.67 |
23.33 |
|||
