直流風扇 JHX9225
9225 尺寸/Size 92X92X25mm DC Axial Flow Fan

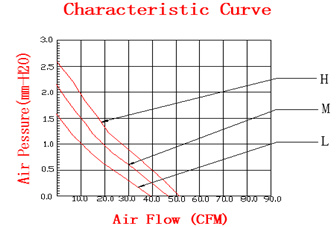

★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規格） |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Input Power 功率（W) |
Speed 轉速 （RPM) |
Air Flow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Noise Level 噪音（dB-A） |
|
JHX9225X12H |
Sleeve Ball |
12 |
10.8~13.2 |
0.36 |
4.32 |
3500 |
60.25 |
5.94 |
40.90 |
|
JHX9225X12M |
0.23 |
2.76 |
2600 |
50.66 |
3.23 |
33.60 |
|||
|
JHX9225X12L |
0.18 |
2.16 |
2100 |
40.91 |
2.71 |
27.80 |
|||
|
JHX9225X24H |
Sleeve Ball |
24 |
21.6～26.4 |
0.28 |
6.72 |
4500 |
72.79 |
9.30 |
45.30 |
|
JHX9225X24M |
0.21 |
5.04 |
3500 |
60.25 |
5.94 |
40.90 |
|||
|
JHX9225X24L |
0.14 |
3.36 |
2600 |
50.66 |
3.23 |
33.60 |
|||
