直流風(fēng)扇 JHX8025
8025 尺寸/Size 80X80X25mm DC Axial Flow Fan

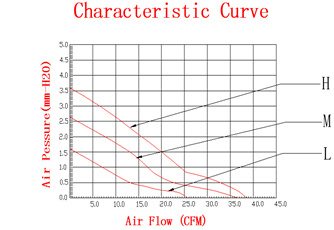

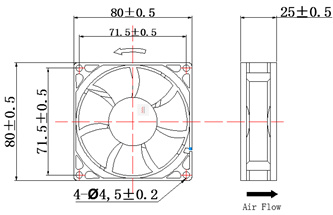

★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格） |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Input Power 功率（W) |
Speed 轉(zhuǎn)速 （RPM) |
Air Flow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Noise Level 噪音（dB-A） |
|
JHX8025X12H |
Sleeve Ball |
12 |
10.8~13.2 |
0.32 |
3.84 |
4000 |
48.67 |
6.72 |
42.90 |
|
JHX8025X12M |
0.23 |
2.76 |
3500 |
40.49 |
5.30 |
37.60 |
|||
|
JHX8025X12L |
0.11 |
1.32 |
2500 |
28.91 |
2.84 |
28.30 |
|||
|
JHX8025X24H |
Sleeve Ball |
24 |
21.6～26.4 |
0.23 |
5.52 |
4500 |
52.91 |
8.27 |
49.10 |
|
JHX8025X24M |
0.13 |
3.12 |
3500 |
40.49 |
5.30 |
37.60 |
|||
|
JHX8025X24L |
0.07 |
1.68 |
2500 |
28.91 |
2.84 |
28.30 |
|||
